12 Pairs Conductor Cable Assy
P/N C2412PUTSAF37PS

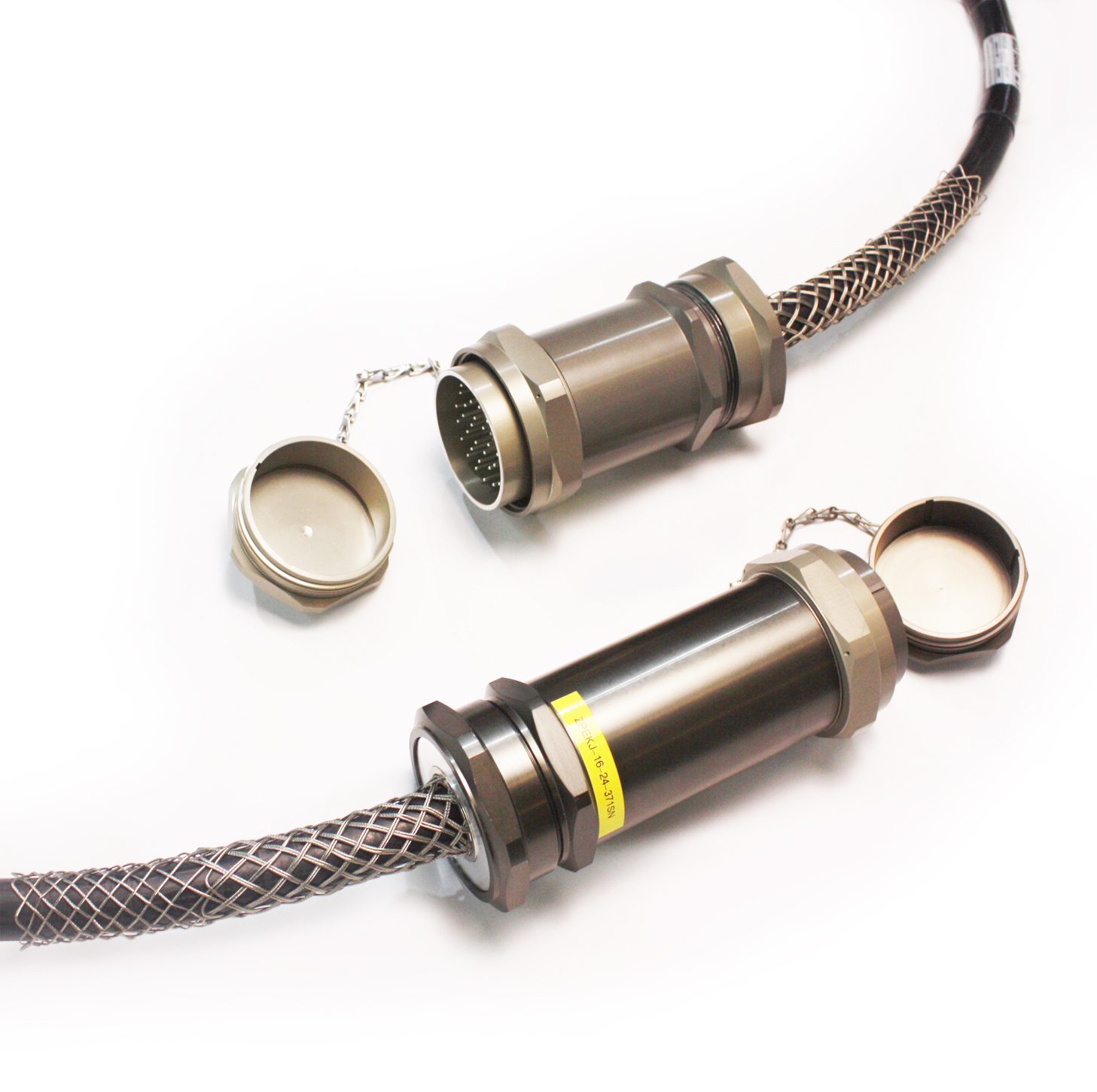

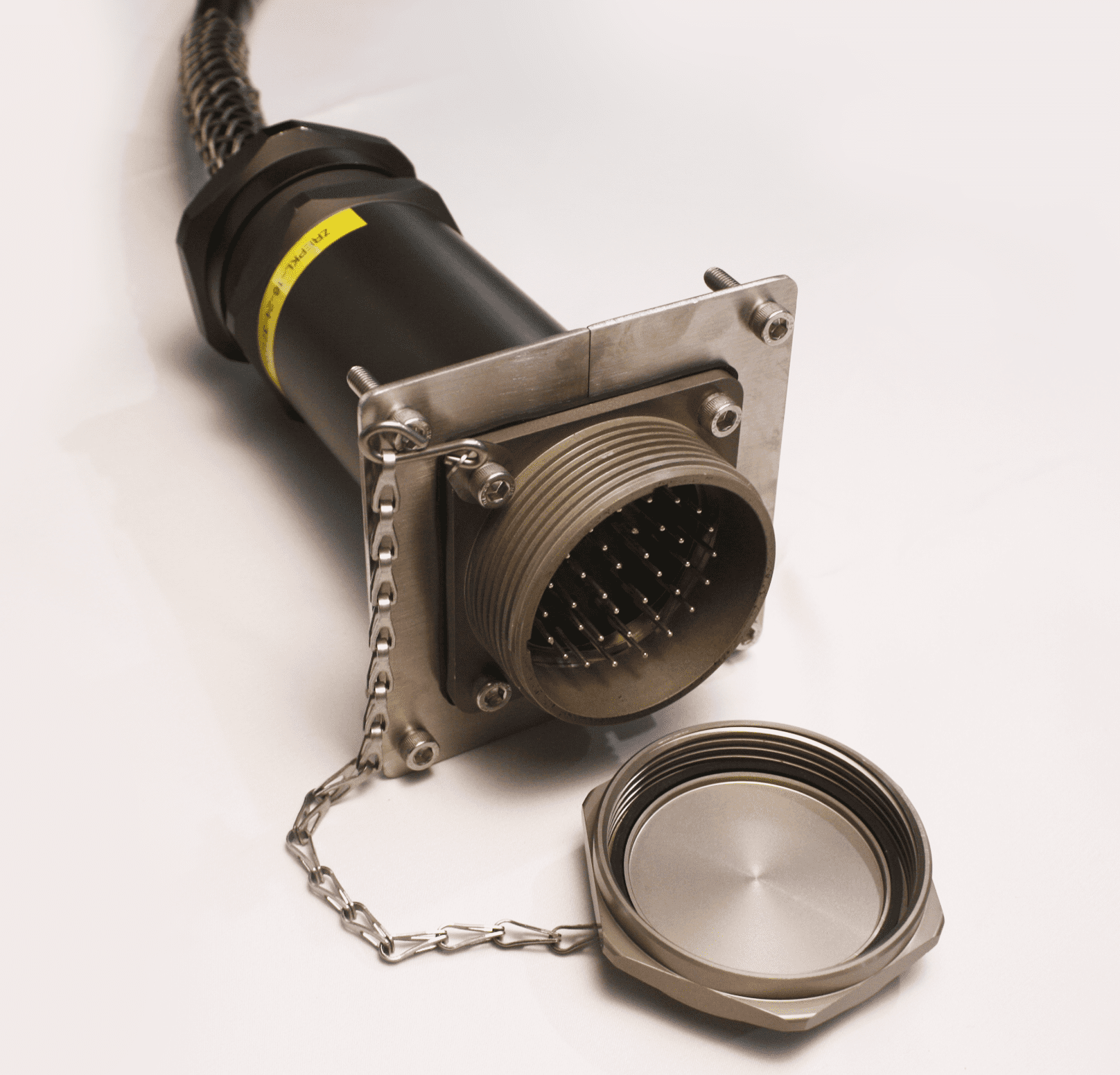

The [12 Pairs Conductor Cable Assy] employs low-smoke halogen-free flame-retardant cables and can be paired with various types of connectors according to technical specifications and requirements.
Our products are customized to suit your needs!
| Manufacturer | HS | Amphenol |
| ZREPKL-16-24-371PN/SN | ||

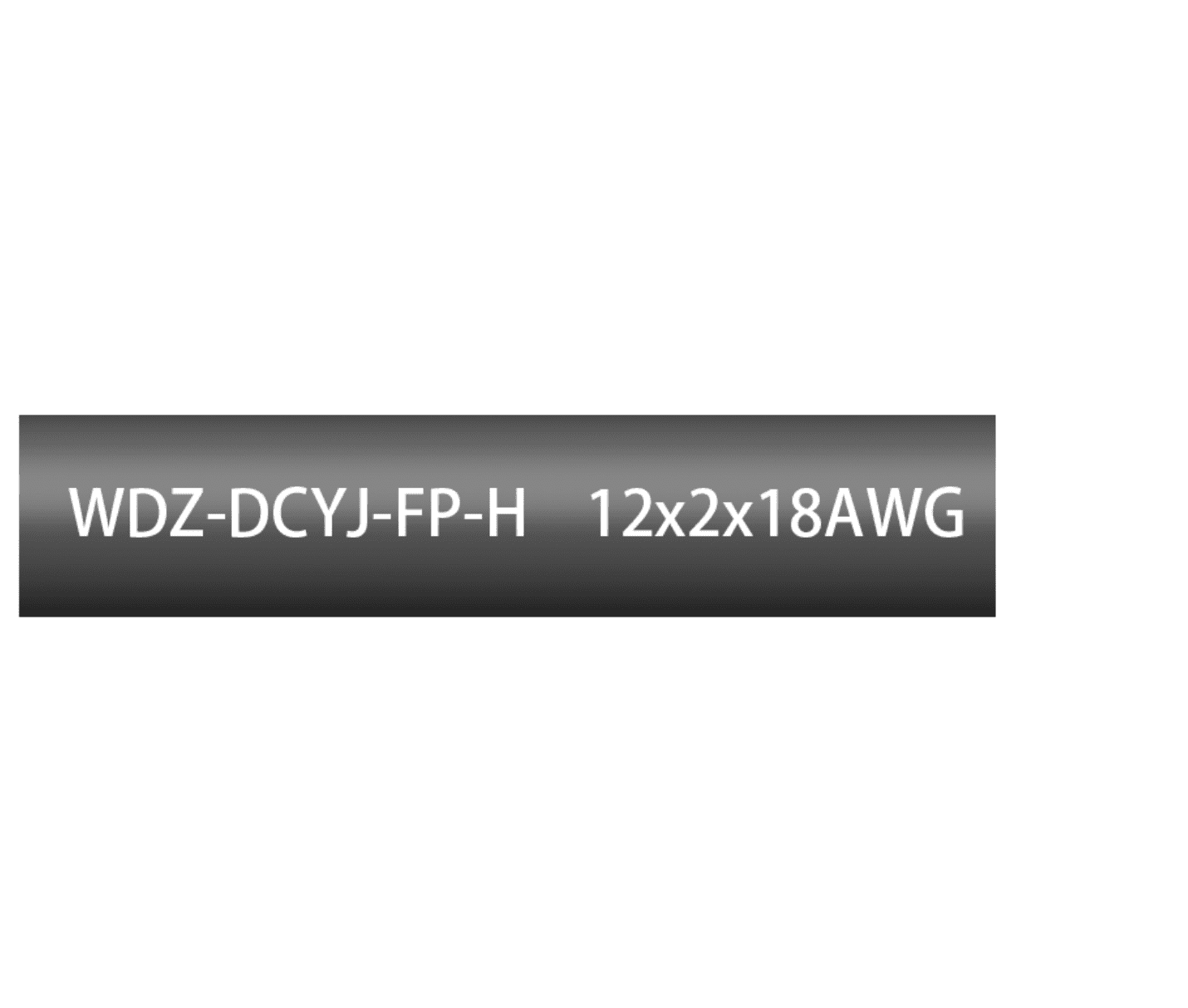

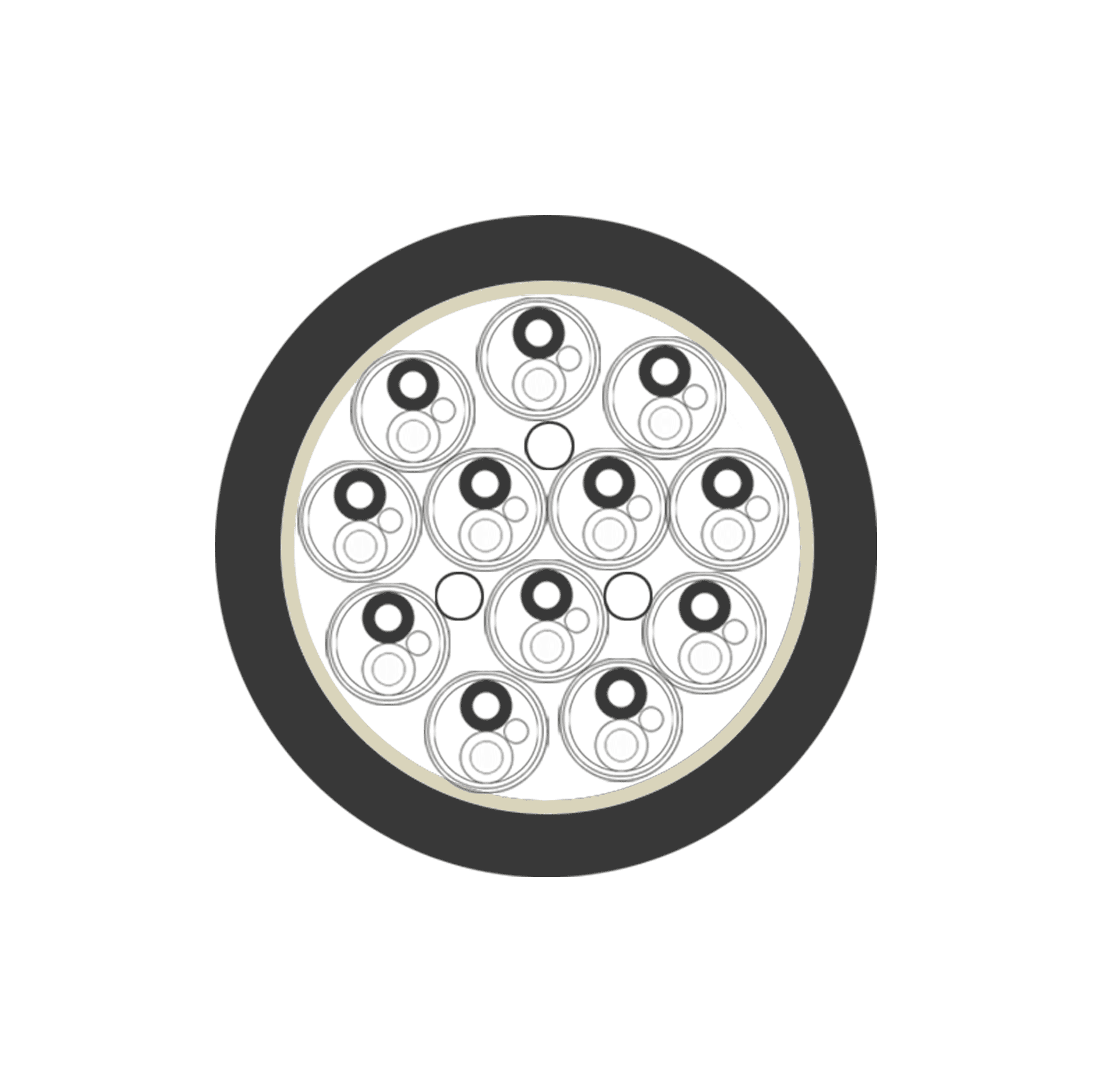

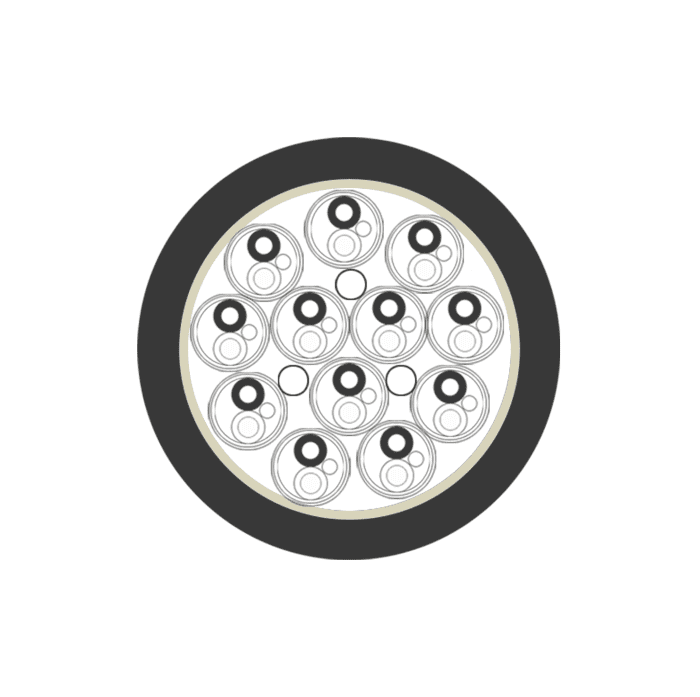

| Type | 12x2x18AWG | ELECTRICAL; SQUARE; FLANGE;MALE(PIN);600V; 16 AWG;24;BASKET WEAVE CABLE GRIP |
| Positions | 37 PN/SN | |
| Temperature | -40~90℃ | -55~125℃ |
| Dielectric Strength Level | 0.6/1KV | |
| Fire Resistance | Low Smoke, Zero Halogen, | |
| Flame Retardant | ||
| Certification | CE | ATEX, UL, CSA, IECex |
| IP Classification | IP68 |
•Utilizing welding techniques, customizable according to requirements
•Optional: UL and IEEE 1580 standard cables with a temperature resistance range of -40 to 125°C
| HS P/N | Size(ft) | |
| C2412PUTSAF37PS-10FT | 10 | |
| C2412PUTSAF37PS-50FT | 50 | |
| C2412PUTSAF37PS-100FT | 100 | |
| C2412PUTSAF37PS-200FT | 200 | |
| C2412PUTSAF37PS-600FT | 600 | |
