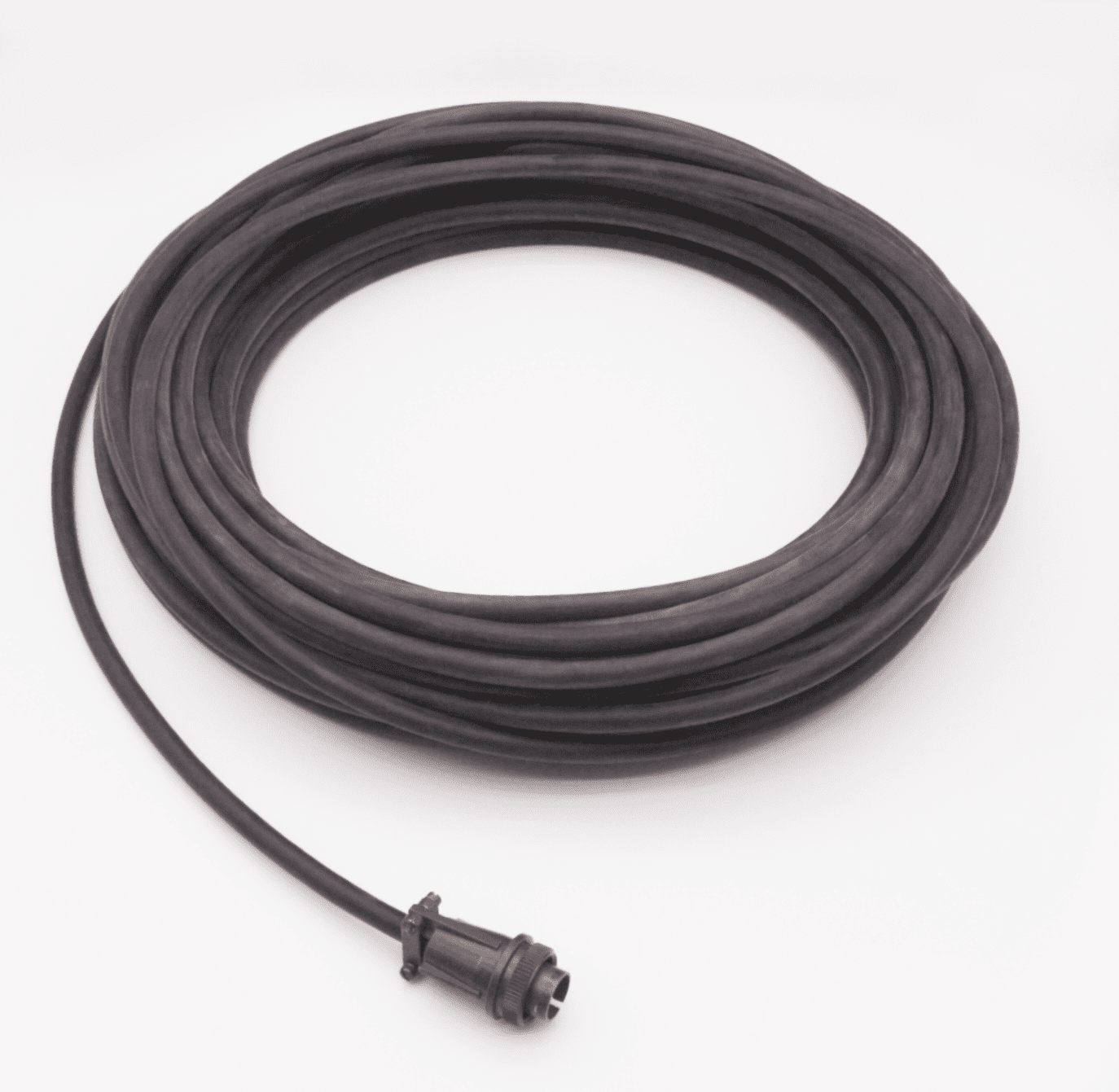

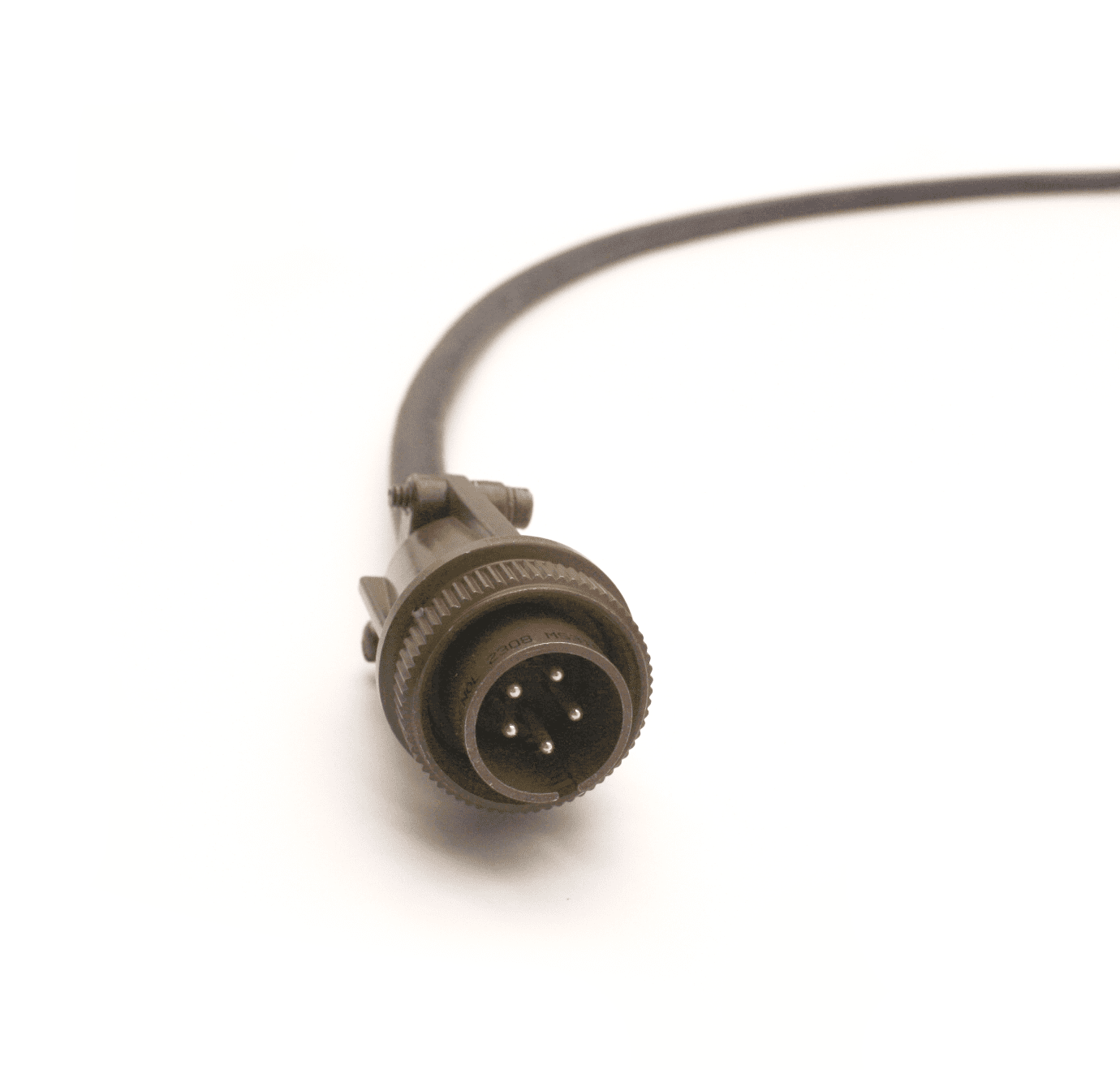

4 Conductor Cable Assy
P/N C2404CUTSAF05NP
The [4 Conductor Cable Assy] employs low-smoke halogen-free flame-retardant cables and can be paired with various types of connectors according to technical specifications and requirements.
Our products are customized to suit your needs!
| Manufacturer | HS | Amphenol |

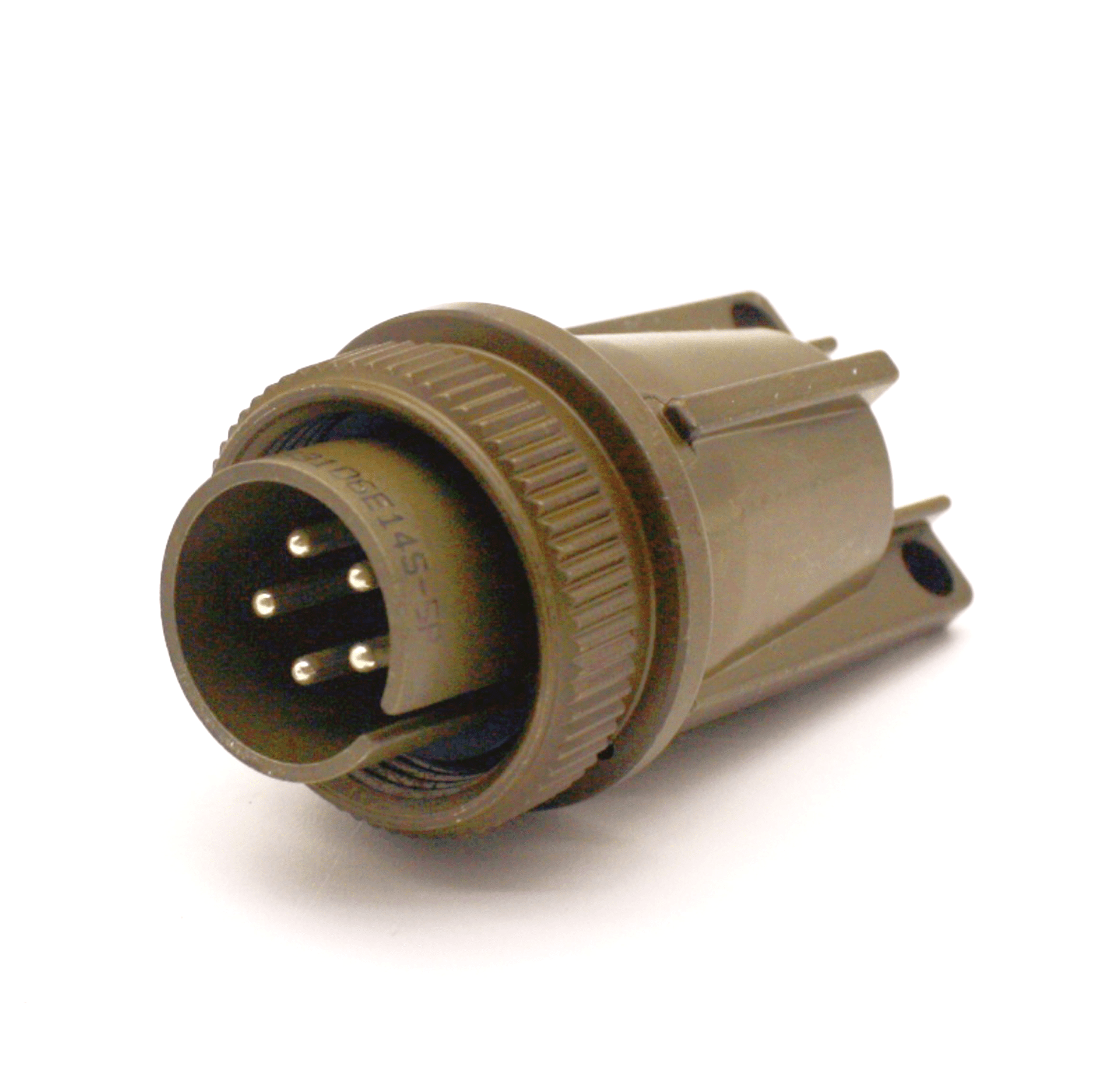

| MS3106E14S-5P | ||

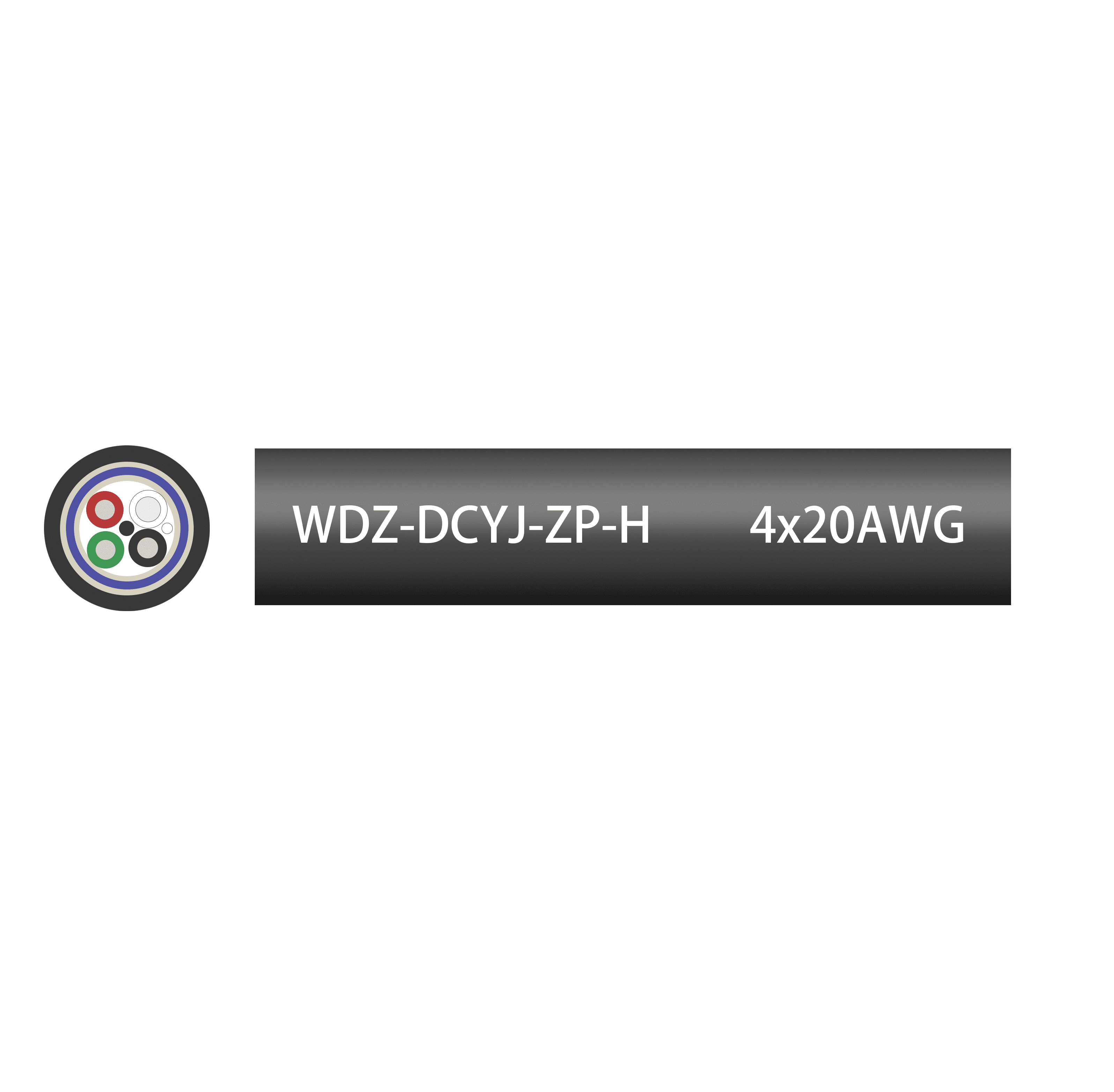

| Type | 4×20 AWG | 250V; 20A WG; 13A |
| Positions | 5 PN/SN | |
| Temperature | -40~90℃ | -55~125℃ |
| Dielectric Strength Level | 0.6/1KV | |
| Fire Resistance | Low Smoke, Zero Halogen, Flame Retardant | |
| Certification | CE | ATEX, UL, CSA, IECex |
| IP Classification | IP67 |
•Utilizing welding techniques, customizable according to requirements
•Optional: UL and IEEE 1580 standard cables with a temperature resistance range of -40 to 125°C
| HS P/N | Size(ft) | |
| C2404CUTSAF05NP-10FT | 10 | |
| C2404CUTSAF05NP-50FT | 50 | |
| C2404CUTSAF05NP-100FT | 100 | |
| C2404CUTSAF05NP-200FT | 200 | |
| C2404CUTSAF05NP-600FT | 600 | |
