Switch:

• 0/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, ST connector);
• Redundant dual 12/24/48 VDC power inputs;
• IP30 aluminum housing;
• Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2);
• -40 to 75°C operating temperature range (-T models）;

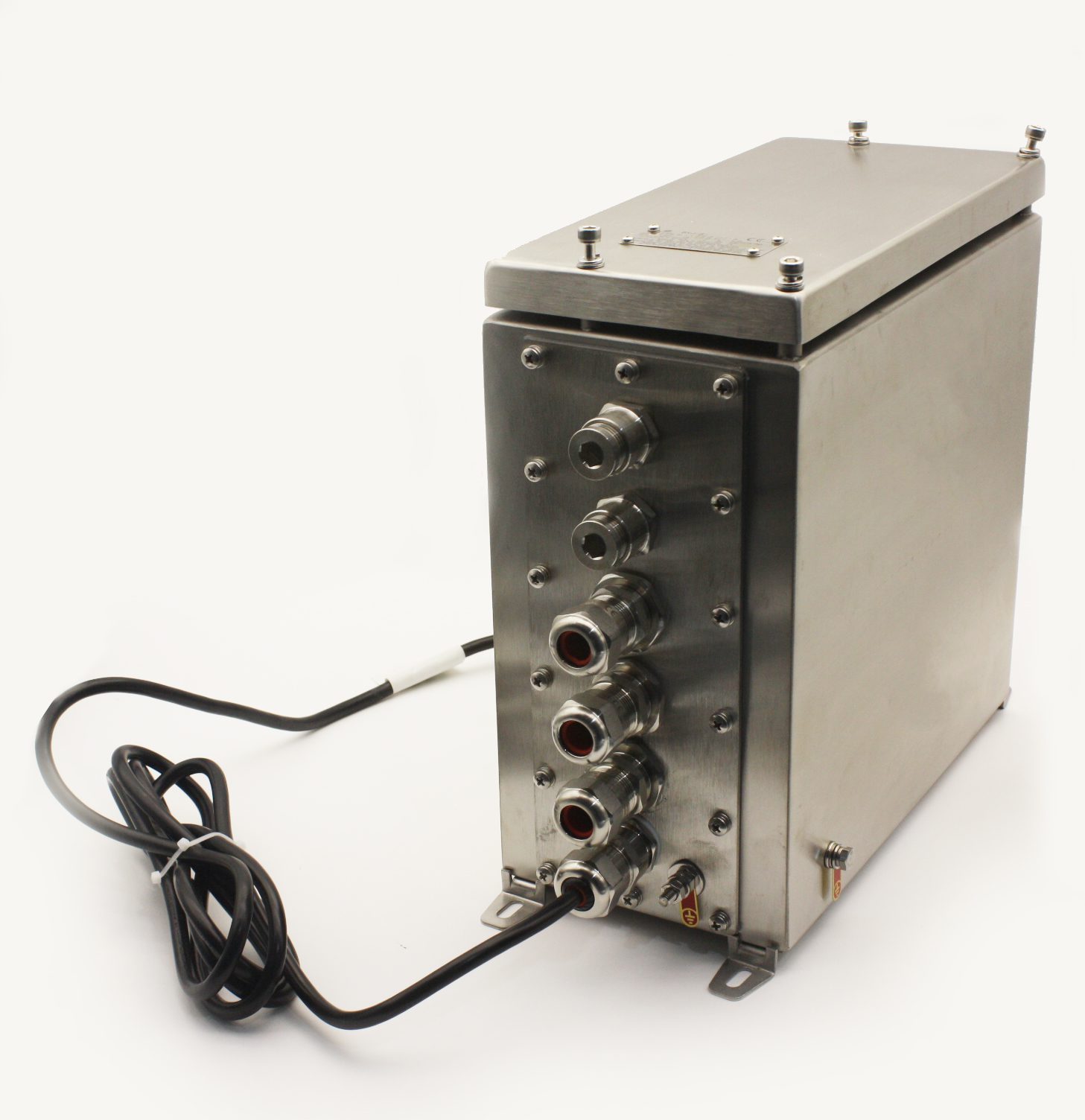

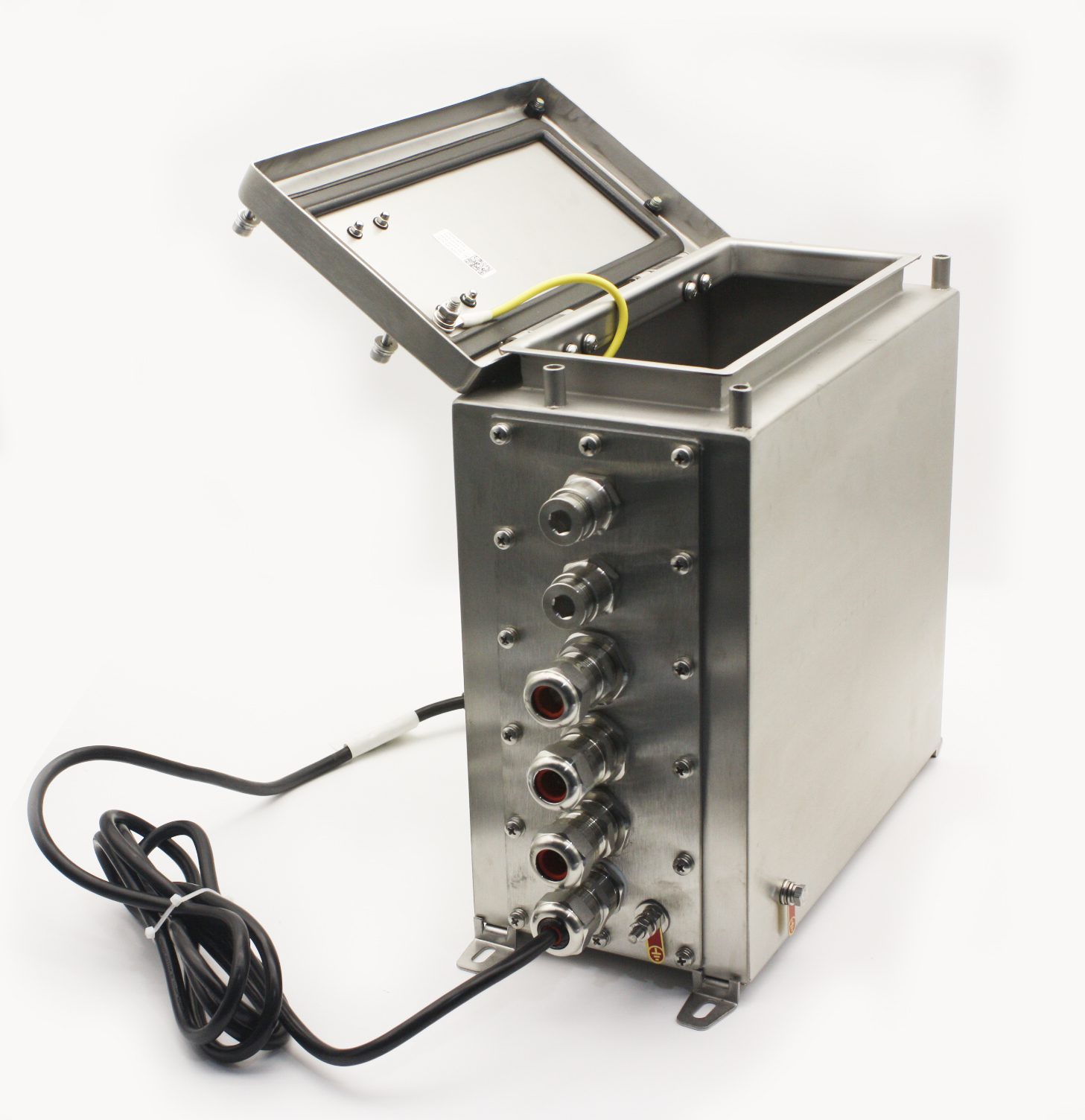

Box:

• Enclosure in SS304, 1.5mm thickness;
• Explosion-proof certification: IEC-Ex Ex e IIC Gb;
• Degree of protection: IP56;
• Rated Voltage: Max.500V AC, 50Hz;
• Internal & external earth;
• Internal fasteners: SS304;
• Exposed fasteners: SS304;
• Nameplate: SS304;
• Gland plate: SS304, 3mm thickness;
• With mounting plate: Al-Zn coated plate;
• Cable gland: SS304, unarmored, cable wiring;
• Plug & Gran: SS304;
• With earth bar;
• Ground connection with enclosure, door, and gland plate;
• Mounting plate: AI-Zn-plated Steel Sheet
• Box dimensions: 300*300*150 mm
