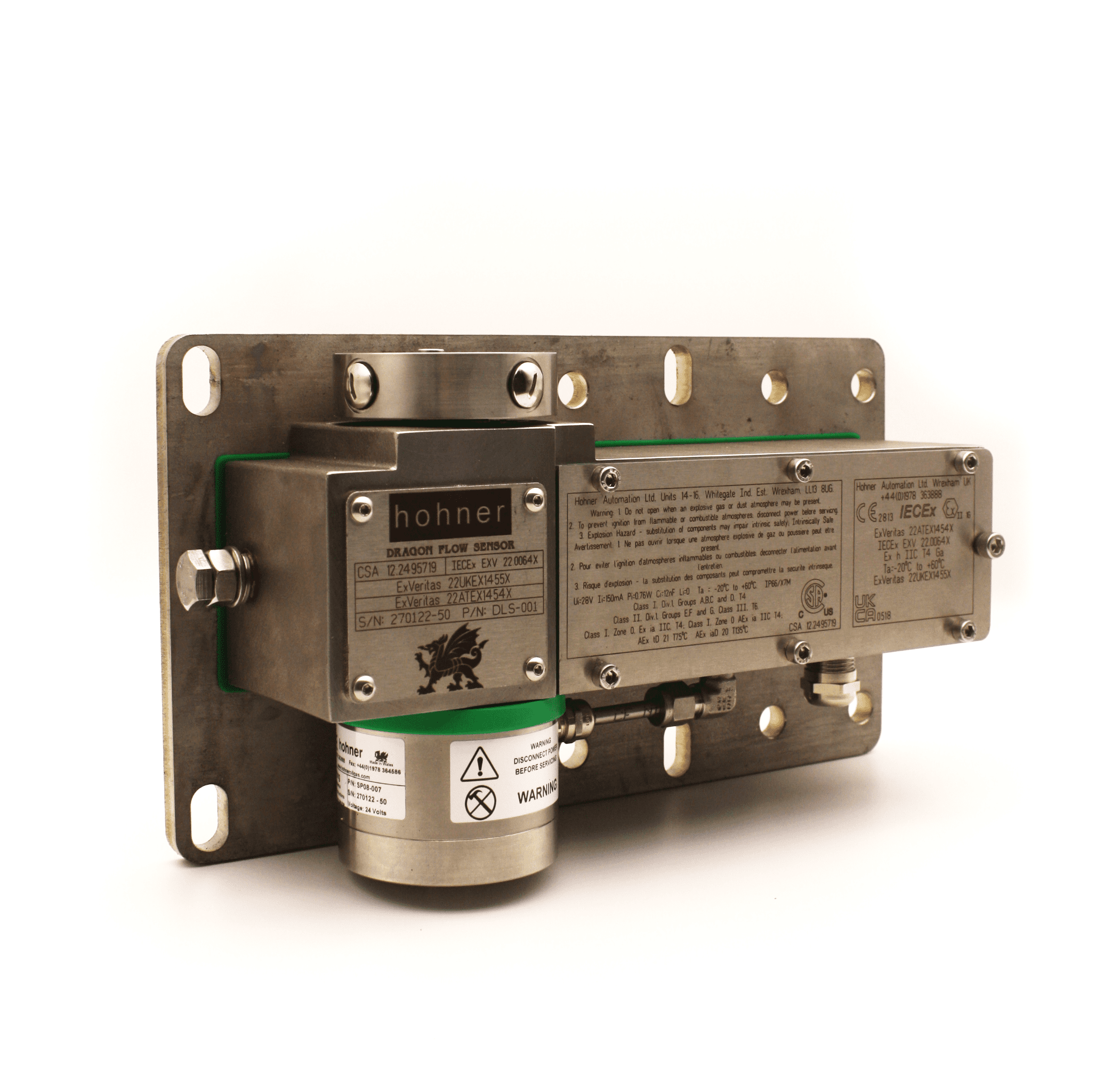

Mud logging -Flow Sensor
P/N: S24MF-HH-001/020

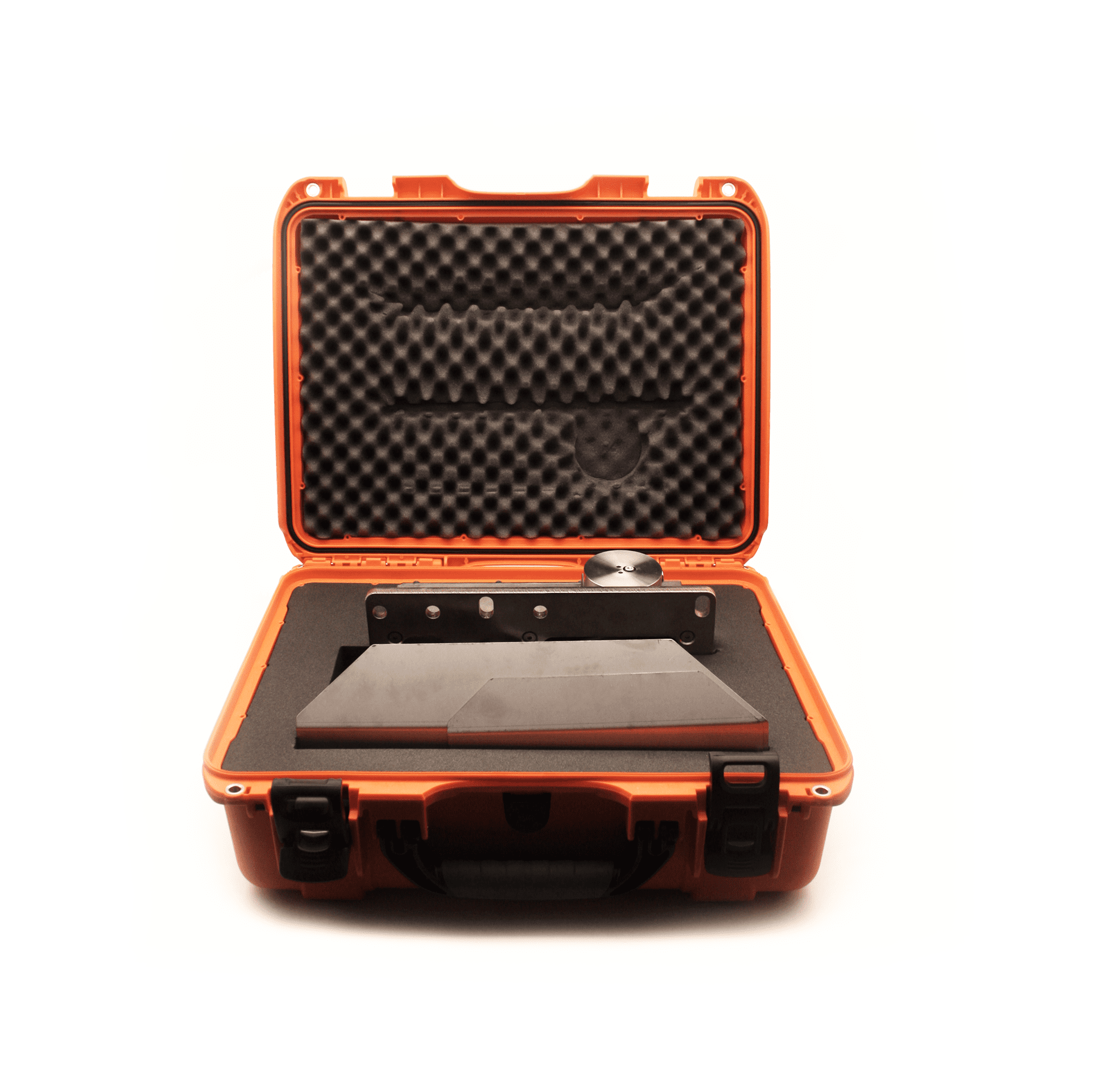

Mud Flow Sensor Assembly: Included mounting bracket, blind plate, gland, etc.
Our products are customized to suit your needs!
| Manufacturer | Hohner |
| Output | 4…20 mA 2 wire current loop output |
| Precision | 8 absolute bits / 256 steps、 |
| Per the 90 degrees within 16mA | |
| Equivalent to 1 degree has 0.177mA、0.177mA has 2.84 steps | |
| Operating temp | Operating temp： – 20 …+60℃ |
| Weight | 26 lbs (12 kg) |
| Protection | IP 66 / X7 M |
| Materials Encoder | Stainless Steel |
| Material Chassis | Stainless Steel |

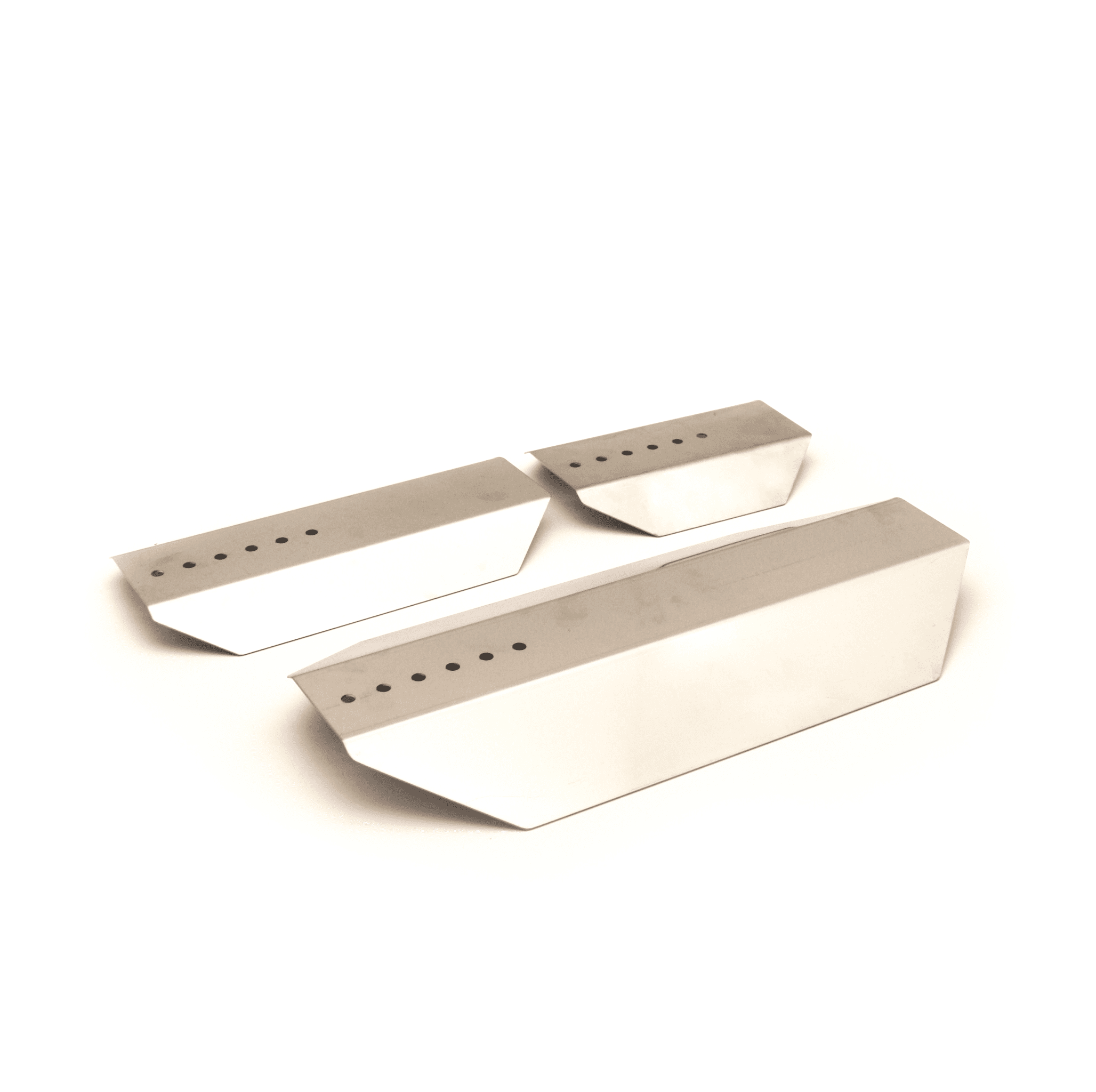

| Material Paddles | Stainless Steel |
| Material Spring | Stainless Steel |
| Pressure Rating | 5 bar |
| Note | Common design of mounting base. |
| Certification | Zone 0 Ex ia IIC Certified |
| CE,ATEX, IECEx, CSA,EAC |
