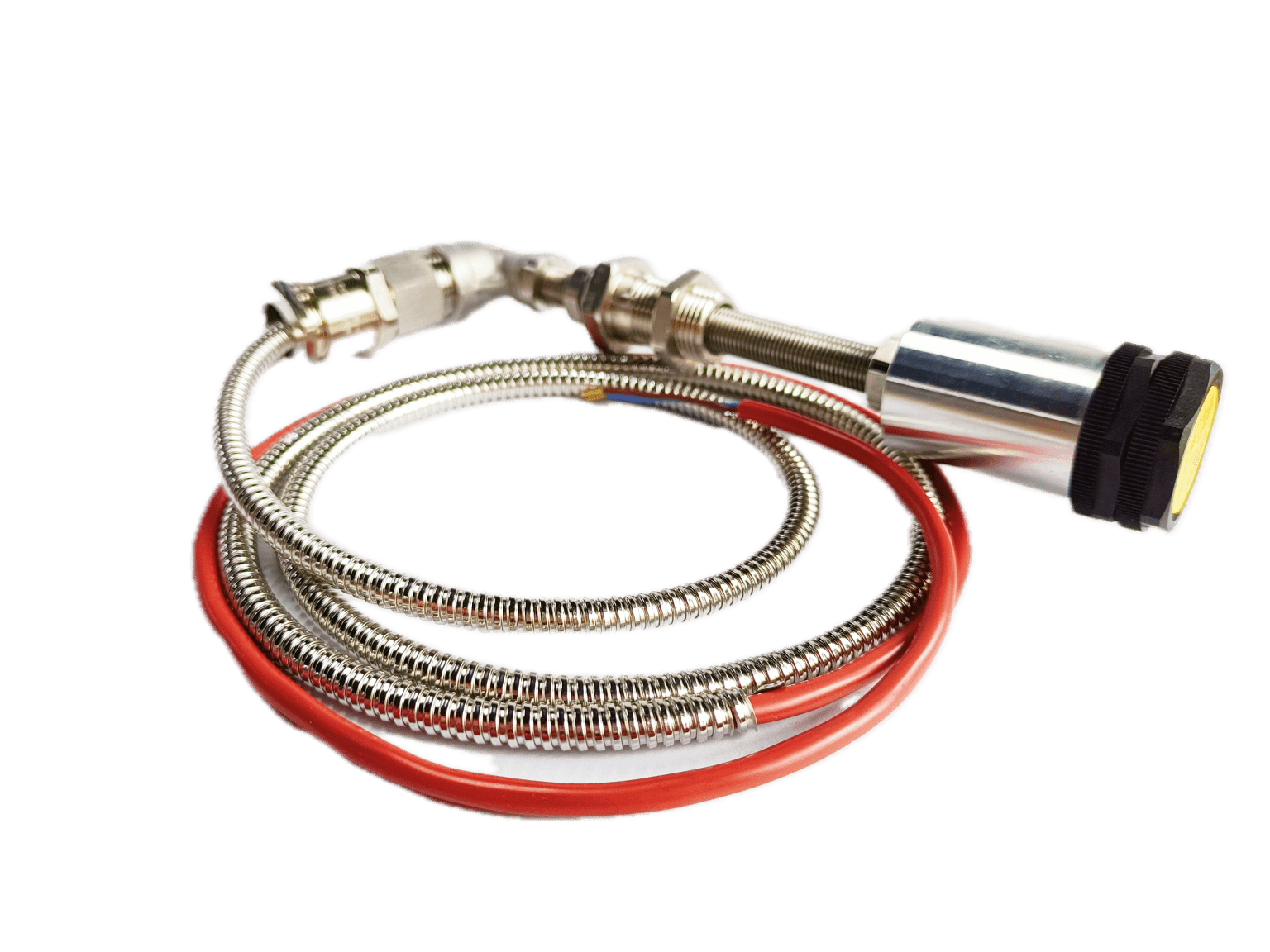

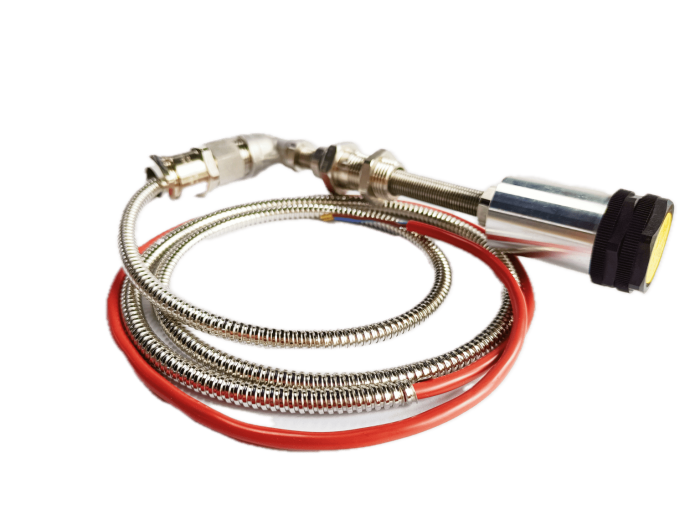

Proximity Sensor Box
P/N: B24EH-303015-01
Our products are customized to suit your needs!
|
Manufacturer |
Turck |
| Rated switching distance(Sn) |
10mm |
|
Safe working distance |
≤(0.81 × Sn) mm |
| Correction Factor |
#37 Steel=1; Aluminum=0.3; Stainless Steel=0.7; Brass=0.4 |
|
Repeatability |
≤2% of full scale |
| Temperature Drift |
≤ ±10% |
|
Hysteresis |
1…10% |
| Working Temperature |
-40-+70℃ |
|
Output Performance |
2 lines NAMUR |
| Switching Frequency |
0.5kHz |
|
Voltage |
Nom. 8.2VDC |
| No excitation current loss |
≥2.1mA |
|
Excitation current loss: |
≤1.2mA |
| Compliance certification |
KEMA 02 ATEX 1090X |
|
Design |
Threads，M30×1.5 |
| Size |
44mm |
|
Shell Material |
Plastic, PA12-GF30 |
| Sensing Surface Material |
Plastic,PA12-GF30 |
|
Bottom Cap |
Plastic, Trogamid T |
| Maximum Torque |
5Nm |
|
Cable Material |
φ5.2mm, SiHSi, Silicone Organic Resin, 2m |
| Cable Cross Section |
2×0.5mm² |
|
Anti Vibration |
55Hz(1mm) |
| Impact Resistance |
30g(11ms) |
|
Degree of Protection |
IP67 |
| Box |
170*150*110mm SUS304 |
