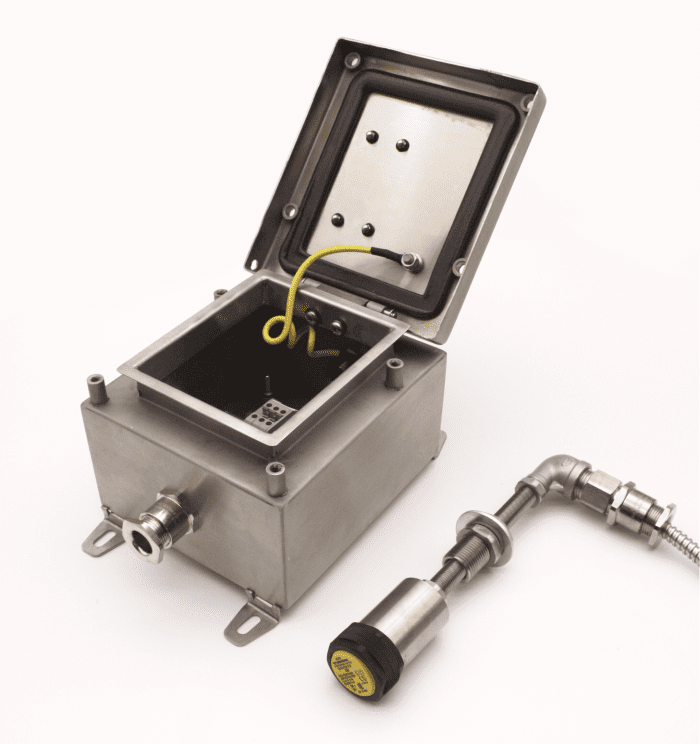

Proximity Sensor Box
P/N: B24EH-303015-01
Our products are customized to suit your needs!
| Features | |
| Manufacturer | Turck |
| Rated switching distance(Sn) | 10mm |
| Safe working distance | ≤(0.81 × Sn) mm |
| Correction Factor | #37 Steel=1; Aluminum=0.3; Stainless Steel=0.7; Brass=0.4 |
| Repeatability | ≤2% of full scale |
| Temperature Drift | ≤ ±10% |
| Hysteresis | 1…10% |
| Working Temperature | -40-+70℃ |
| Output Performance | 2 lines NAMUR |
| Switching Frequency | 0.5kHz |
| Voltage | Nom. 8.2VDC |
| No excitation current loss | ≥2.1mA |
| Excitation current loss: | ≤1.2mA |
| Compliance certification | KEMA 02 ATEX 1090X |
| Design | Threads，M30×1.5 |
| Size | 44mm |
| Shell Material | Plastic, PA12-GF30 |
| Sensing Surface Material | Plastic,PA12-GF30 |
| Bottom Cap | Plastic, Trogamid T |
| Maximum Torque | 5Nm |
| Cable Material | φ5.2mm, SiHSi, Silicone Organic Resin, 2m |
| Cable Cross Section | 2×0.5mm² |
| Anti Vibration | 55Hz(1mm) |
| Impact Resistance | 30g(11ms) |
| Degree of Protection | IP67 |
| Box | 170*150*110mm SUS304 |
