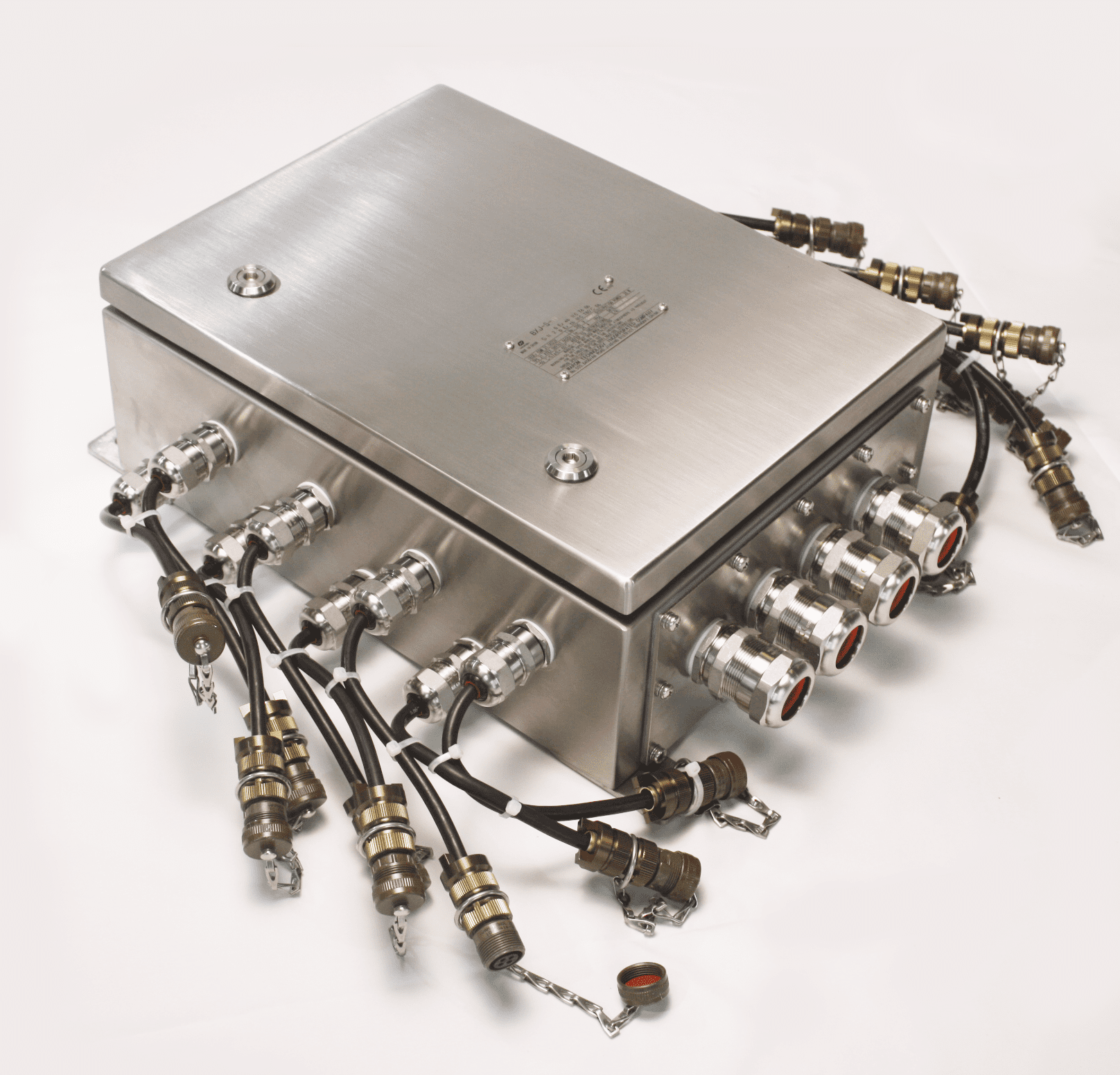

Terminal Junction Box
P/N: B24T-304015-01
Enclosure is made of SS304, 1.5mm thickness
Degree of protection: IP66
Rated voltage:Max.500V AC,50Hz
Internal & External earth
Internal fastener: SS304
Exposed fastener: SS304
Nameplate: SS304
With mounting plate: Al-Zn plate t=2mm
| Name | Manufacturer | Type |
| Gran | WAROM | DQM-III M25×1.5A |
| Gran | WAROM | DQM-II M20×1.5B |

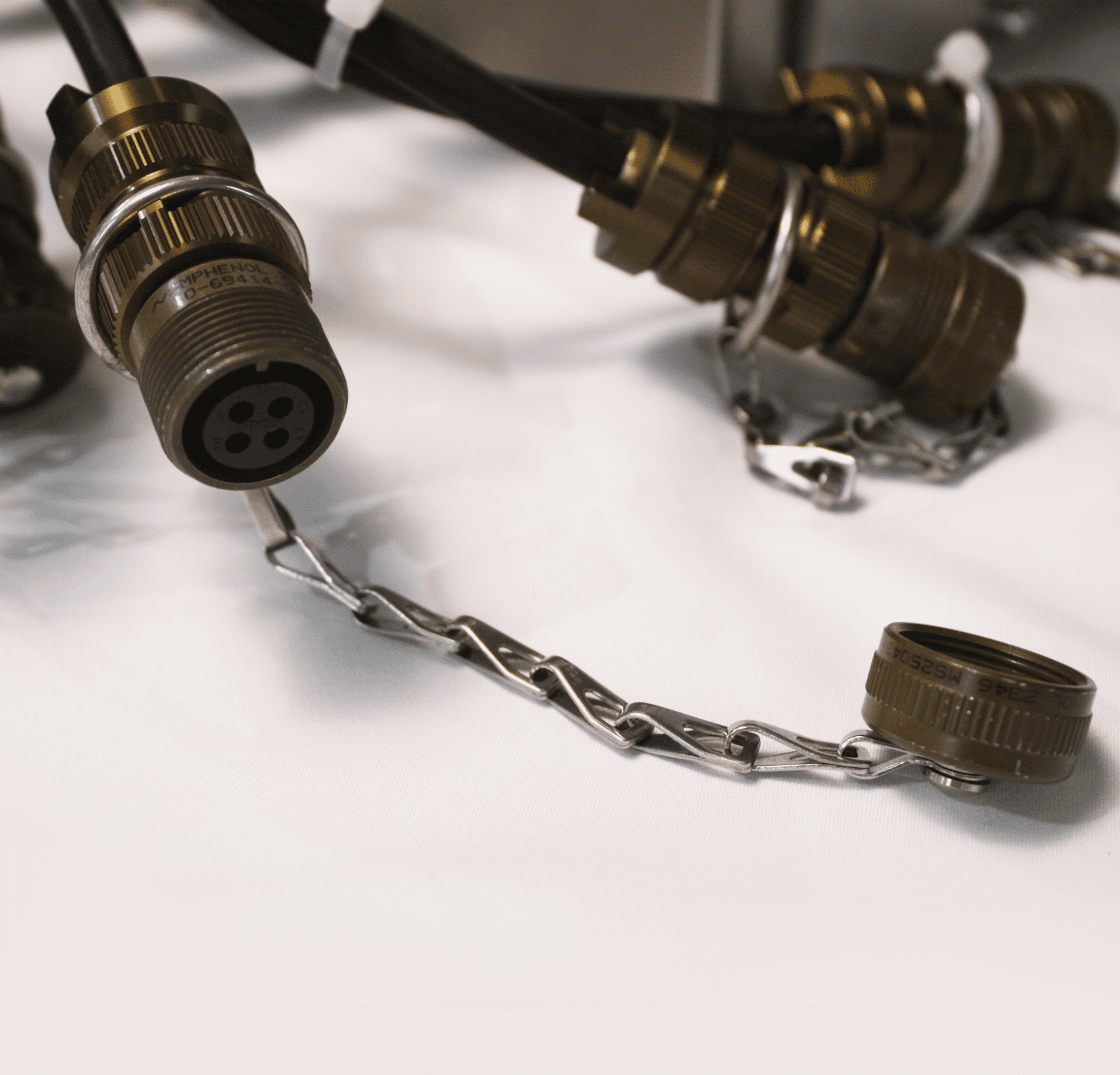

| RCPT Socket | Amphenol | 10-069414-02S |
| RCPT Part | Amphenol | MS25043-14D |
| Terminal Row | Weidmuller | SAK 2.5EN |
| Gran Plate | Custom | Alternative Reference |
| BOX | WAROM | IP56/SUS304 |
| 300* 400*150 | ||
| Gran | WAROM | DQM-III M25×1.5A |
| Gran | WAROM | DQM-II M20×1.5B |

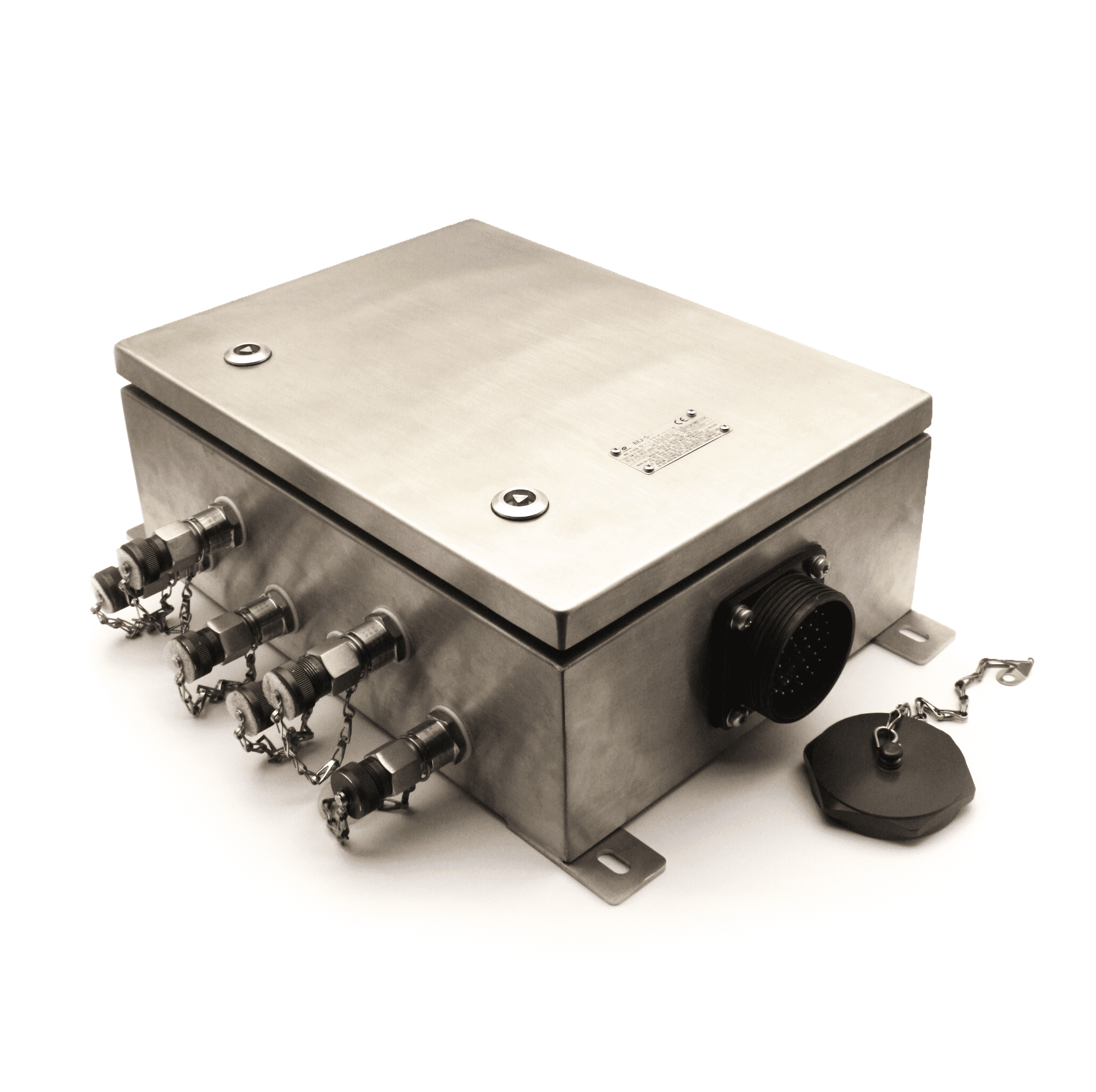

P/N: B24T-304015-01
Enclosure is made of SS304, 1.5mm thickness
Degree of protection: IP66
Rated voltage:Max.500V AC,50Hz
Internal & External earth
Internal fastener: SS304
Exposed fastener: SS304
Nameplate: SS304
With mounting plate: Al-Zn plate t=2mm
| Name | Manufacturer | Type |
| BOX | WAROM | BXJ-S-IV，300*400*150 |
| Gran plate | Customized | 280*105*3mm、SUS304 |
| Gran plate | Customized | 250*105*3mm、SUS304 |
| Gran | WAROM | M20*1.5(M)/NPT1/2(F) |
| Plug | WAROM | BPT-NPT1/2 |

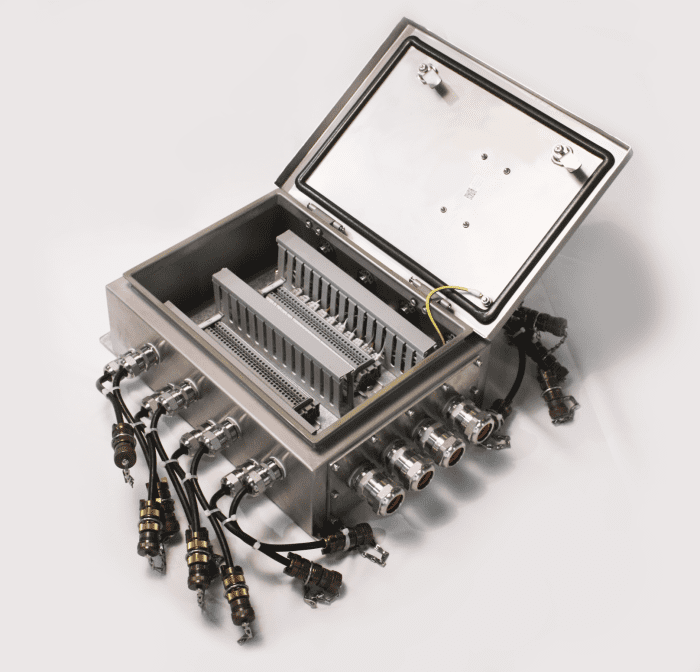

| Terminal Row | IDEC | BNH15MW |
| Terminal Row | IDEC | BNE15W |
| Terminal Row | IDEC | BNL6 |
| Fixing frame | Weidmuller | SAKEW 35 |
| HS P/N | Features | |
| B24T-304015-03 | Mud Pit Area, 011 Assembly | |
| B24T-304015-04 | Mud Pit Area, 72 TERM | |
